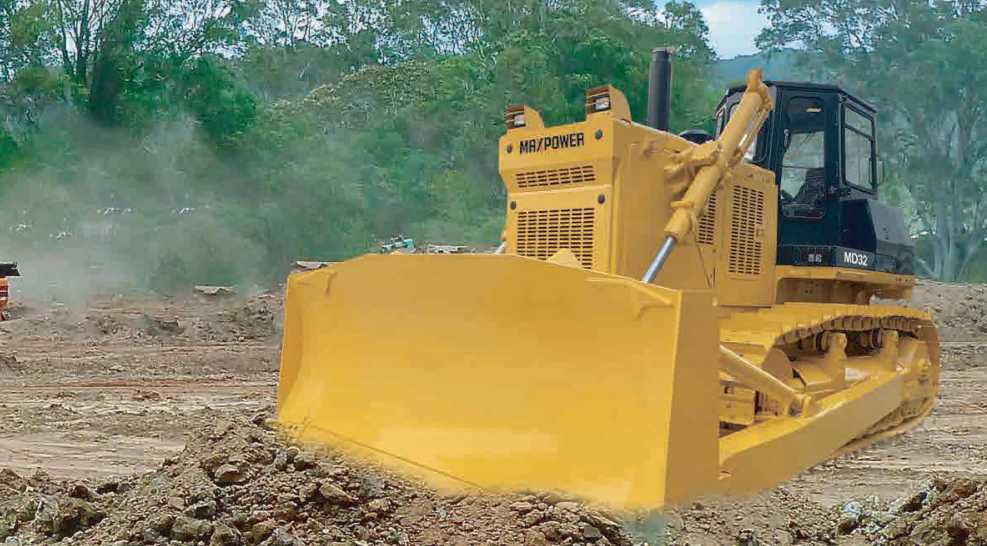

MD hydraulic transmission bulldozer
Deskripsi
MD hydraulic transmission bulldozer adalah jenis bulldozer yang menggunakan sistem transmisi hidraulik untuk mentransfer tenaga dari mesin ke sistem penggerak (drive system). Bulldozer ini dirancang untuk memberikan efisiensi tenaga yang lebih tinggi, kontrol yang lebih baik, dan kinerja yang andal dibandingkan dengan transmisi mekanis konvensional.
Tipe
MD16E
MD22E
Fitur Keamanan
Sistem Rem Hidraulik Otomatis
Kontrol Hidraulik Presisi
Sistem Keamanan Hidraulik
Fitur Lainya
Sistem Hidraulik Berkinerja Tinggi
Sistem Pendinginan Canggih
Kabin Operator yang Nyaman
Spesifikasi
Dimensi
| Type | 160HP Standard Hydraulic Crawler Type |
| Engine model | Weichai WD10G178E25 |
| Displacement (L) | 9.726 |
| Rated power (Kw/rpm) | 131/1850 |
| Max. torque (N.m/rpm | 830/1000-1200 |
| Operating Weight | 17T |
| Dimension - without ripper (mm) | 4990 x 3440 x 3110 |
| Min. ground clearance (mm) | 405 |
| Ground pressure (MPa) | 0.067 |
| Track gauge (mm) | 1880 |
Engine
| Dozing capacity (m3) | 4.55 |
| Blade width (mm) | 3390 |
| Blade height (mm) | 1150 |
| Max. drop below ground (mm) | 540 |
| Track shoe width (mm) | 510 |
| Pitch (mm) | 203.2 |
| Quantity of track link | 37 |
| Quantity of carrier rollers | 4 |
Transmisi
| Quantity of track rollers | 6 |
| Max. pressure (MPa) | 14 |
| Discharge (L/min) | 213 |
| Max, tractor force | 146 |
| Forward speed (Km/h) | F1:0-3.29 F2:0-5.85 F3:0-9.63 |
| Rear speed (Km/h) | R1:0-4.28 R2:0-7.59 R3:0-12.53 |
Dimensi
| Type | 220HP Standard Hydraulic Crawler Type |
| Engine model | Cummins NT855-C280510 |
| Displacement (L) | 14.01 |
| Rated power (Kw/rpm) | 175/1800 |
| Max. torque (N.m/rpm | 1030/1250 |
| Operating Weight | 23.5 T |
| Dimension - without ripper (mm) | 5460 x 3725 x 3395 |
| Min. ground clearance (mm) | 2730 |
| Ground pressure (MPa) | 0.077 |
| Track gauge (mm) | 2000 |
Engine
| Dozing capacity (m3) | 6.4 |
| Blade width (mm) | 3725 |
| Blade height (mm) | 1317 |
| Max. drop below ground (mm) | 540 |
| Track shoe width (mm) | 610 |
| Pitch (mm) | 216 |
| Quantity of track link | 38 |
| Quantity of carrier rollers | 4 |
Transmisi
| Quantity of track rollers | 7 |
| Max. pressure (MPa) | 14 |
| Discharge (L/min) | 262 |
| Max, tractor force | 202 |
| Forward speed (Km/h) | F1:0-3.60 F2:0-6.50 F3:0-11.20 |
| Rear speed (Km/h) | R1:0-4.30 R2:0-7.70 R3:0-13.20 |
Pilihan Warna
